One-click alarm

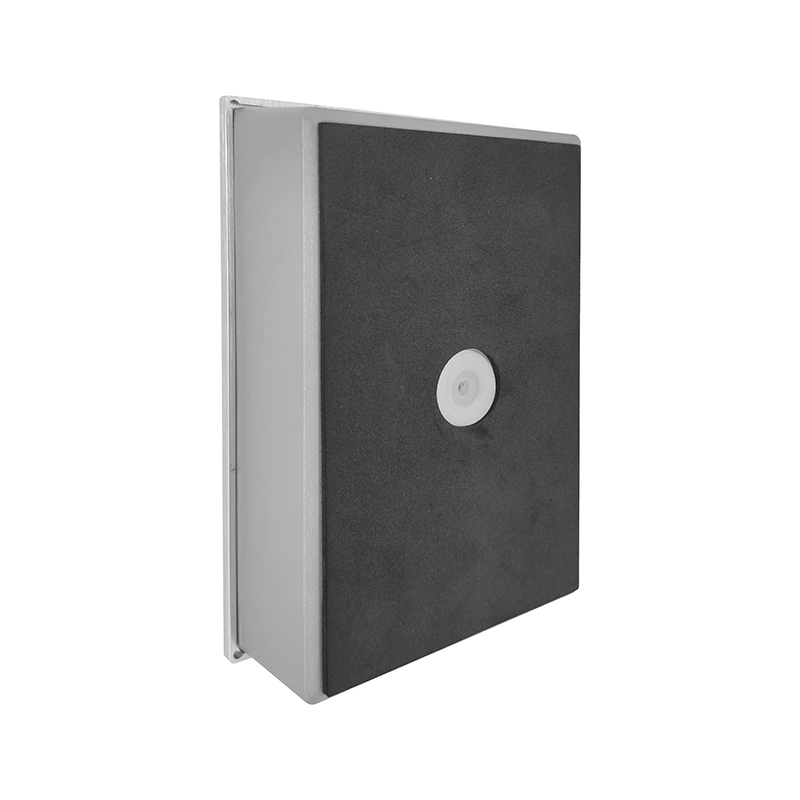

DH-X2L
Integrated alarm terminal for street lighting systems
Visual emergency call terminal, integrating high-definition video, two-way intercom, and one-button alarm; designed with industrial-grade protection for emergency safety assistance in various smart street lighting scenarios.
Features
Supports 24-hour high-definition video calls and bidirectional full-duplex intercomCompatible with the standard SIP protocol and other SIP devicesBuilt-in AI noise reduction and echo cancellation algorithms for clear speech in noisy environmentsSupports multiple alarm activation methods including one-key alerts via physical buttons, AI voice keyword alerts, abnormal voiceprint alerts, and intelligent video analysis alerts.Supports PoE and DC power supply, ensuring local alarms are possible even when there is a power or network outage.Meets national standards and industry safety regulations, and has undergone third-party testing and certification.Combines a panel and a base box in one design, suitable for both recessed and exposed mounting.Can be seamlessly integrated into various streetlight poles, offering excellent concealment.IP65 & IK10 industrial protection, 200W/1080P high-definition video (cameras)
| Processor | High-performance embedded System-on-Chip (SOC) processor |
| Operating system | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Network | Wired |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 5W speaker + 30W amplifier output |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Alarm Interface | 3 digital input channels, 2 digital output channels |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤5W |
| Material | Aluminum alloy brushed panel |
| Dimensions | 110mm x 170mm x 42mm |
| Installation method | Embedded |
| Operating Temperature | -30°C to 75°C |
