One-click alarm

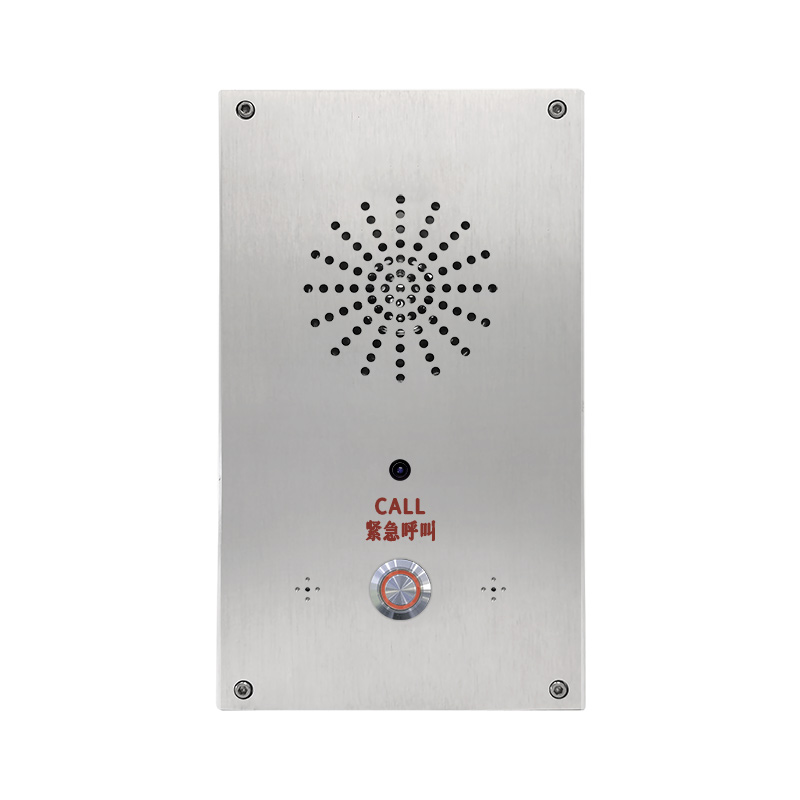

DH-X2LD
Integrated alarm terminal for street lighting systems
An integrated emergency assistance and intercom broadcasting device designed specifically for smart street lighting systems. This terminal combines high-definition video capture, two-way full-duplex intercom, synchronized audio and video recording, precise electronic map positioning, and remote broadcasting functions. It features a new waterproof groove design that significantly enhances the device's resistance to water, mold, and environmental conditions, making it suitable for various outdoor applications such as smart street lighting. It provides reliable emergency response and dispatch support for urban public safety.
Features
New waterproof silicone strip, with improved waterproof and corrosion-resistant properties304 stainless steel brushed panelIntegrated wall-mounted structureHighly recognizable emergency call designStainless steel panel + sealed structureHigh-definition video intercom + full-duplex audioOne-button emergency call + active alarm integrationAI intelligent warningCloud platform + multi-system integrationWaterproof and dustproof design for complex environments, providing outdoor emergency assistanceIntegrated panel and base box design, suitable for recessed or exposed installationCan be perfectly integrated into various types of street lamp posts, with high concealmentIP65 & IK10 industrial protection, 200W/1080P high-definition video (camera model)
| Processor | High-performance embedded SOC processor |
| Operating system | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Network | Wired |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 5W speaker + 30W amplifier output |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Alarm Interface | 3 digital input channels, 2 digital output channels |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤5W |
| Material | Aluminum alloy brushed panel |
| Dimensional specifications | 119.3mm x 206.5mm x 40mm |
| Installation method | Embedded |
| Operating Temperature | -30°C to 75°C |
