AI one-click alarm
DH-XY01

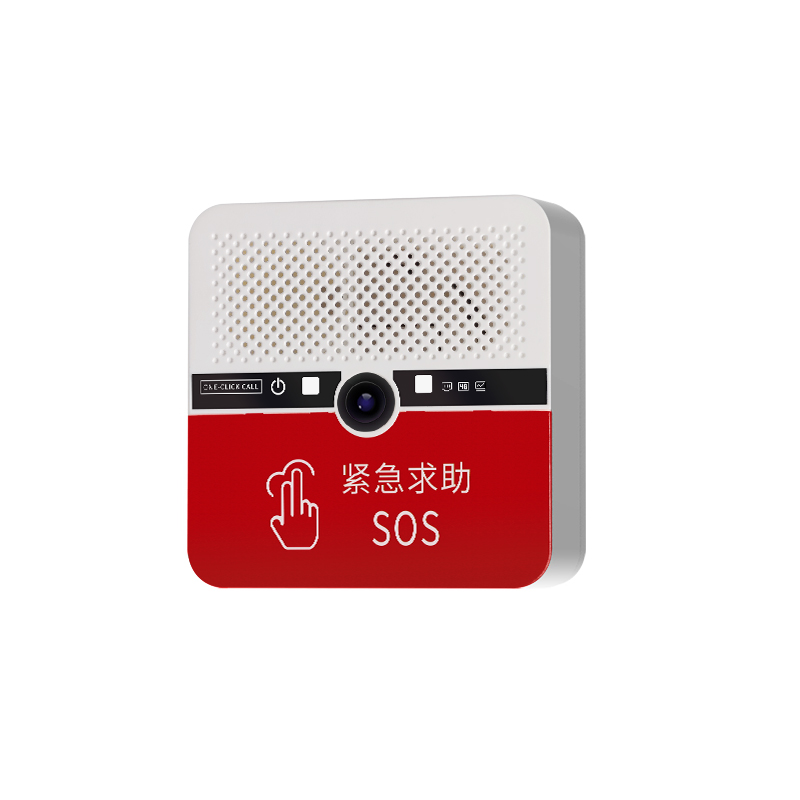

AI Campus Anti-Bullying ABS Alarm Terminal
Mini ABS Alarm Terminal, small in size and easy to deploy, featuring a one-button emergency alarm and high-definition intercom for lightweight security protection in schools, communities, elderly care, and other settings.
Features
Includes 58 predefined keywords + 15 custom keywordsSupports wired connection, 4G (optional), POE power supply (optional)Full-duplex voice intercomStandard SIP/ONVIF protocols can be easily integrated into most brands in the VoIP and security fieldsHigh-sensitivity pickup microphone2-watt high-quality speakerMultiple terminals can process alarm information simultaneously: server, app, mini-program, web page, agent, and management machineNormally no recording is done, but the automatic recording function is activated when an alarm is triggered.Natural language semantics-based generalization of alarm notifications.Noise detection for automatic alarm activation.Can identify the voices of the victim, the perpetrator, and bystanders, improving detection accuracy in all aspects.
| Processor | High-performance embedded System-on-Chip (SOC) processor |
| Operating system | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Network | Wired /4G/WIFI |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 2W speaker |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Alarm Interface | 1 digital input, 1 digital output |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤5W |
| Material | ABS material |
| Dimensional specifications | 88mm×88mm×34mm |
| Installation method | Wall-mounted |
| Operating Temperature | -30°C~75°C |
