AI one-click alarm
DH-SB-86

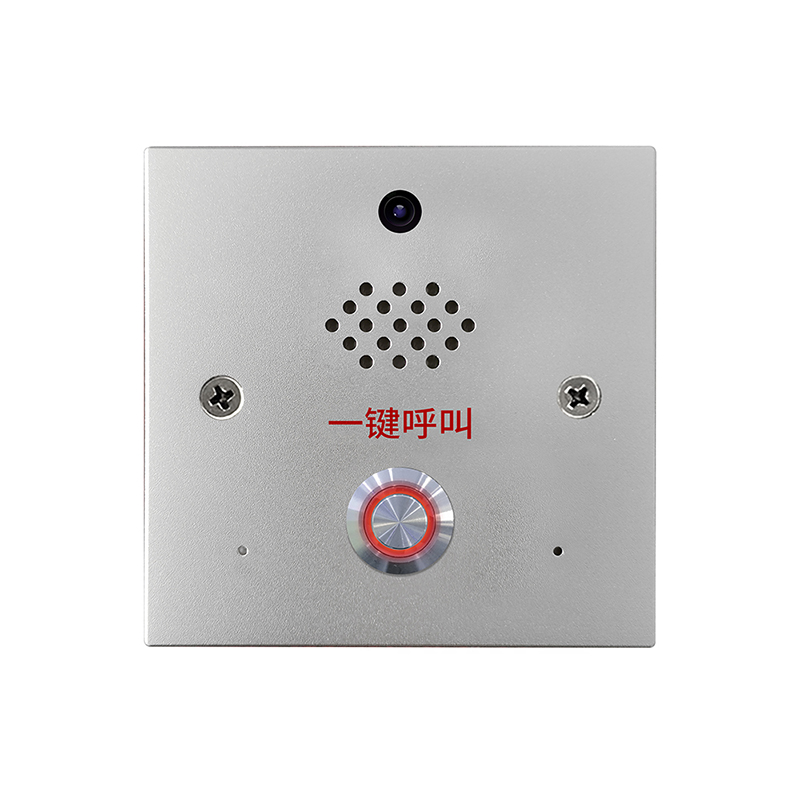

AI Campus Anti-Bullying 86-Box Alarm Terminals
86-Box AI Alarm Video Terminals: small and discreet, easy to install, featuring AI-based detection of abnormal behavior and high-definition video communication for 24/7 security in various indoor and outdoor areas.
Features
Supports keyword entry and dialect recognition on the device sideSimultaneous processing of alarm information across multiple terminals: server, app, mini-program, web page, agent, and management machineNatural language-based alarm generalizationSupports wired, POE-powered, WiFi, and 4G connectivity2-watt high-quality speakersActive listening functionReal-time broadcasting, scheduled broadcasting functionsSupports external sound and light alarmsSupports external smoke detectors and smoke prohibitorsCan recognize the speech of the bullied, the perpetrator, and the bystanders, enhancing detection accuracy through comprehensive recognition
| Processor | High-performance embedded System-on-Chip (SOC) processor |
| Operating System | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Network | Wired/WIFI/4G |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 2W speakers + 30W amplifier output |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Alarm Interface | 1 digital input, 1 digital output |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤5W |
| Material | Aluminum alloy brushed panel |
| Dimensional specifications | 86mm×86mm×42mm |
| Installation method | Wall-mounted |
| Operating temperature | -30°C~75°C |
