One-click alarm

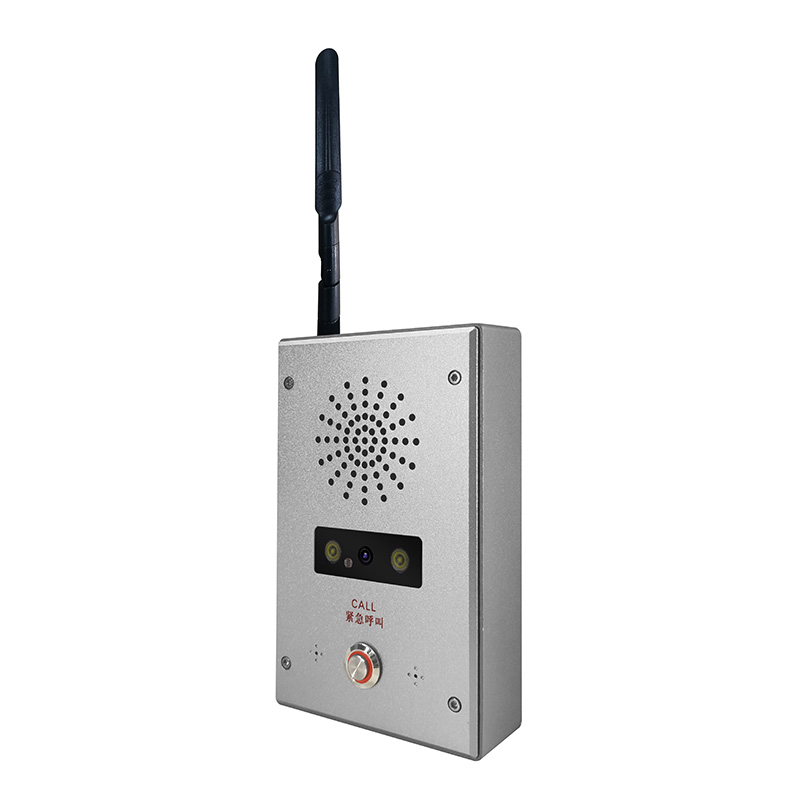

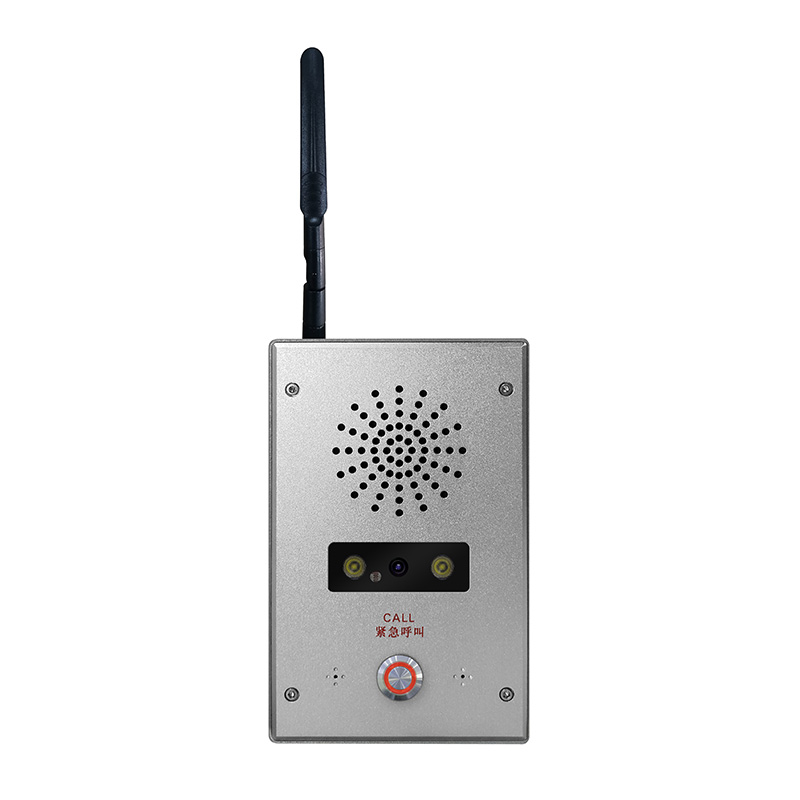

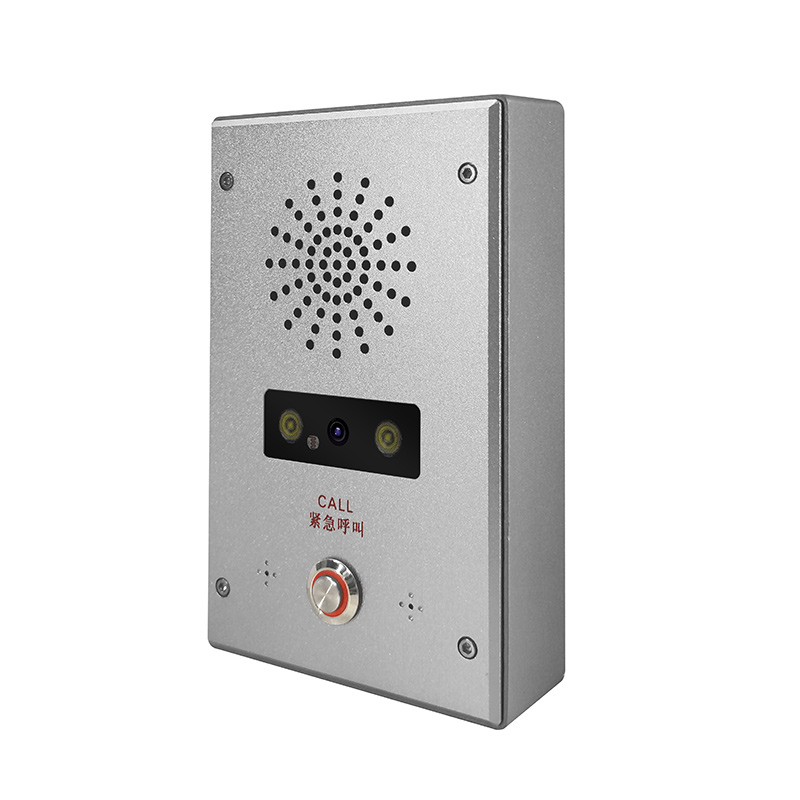

DH-X2-T1
Visual one-button emergency alarm intercom terminal
Frost-resistant metal exterior with enhanced lighting for emergency calls; integrates high-definition video intercom, one-button emergency call, and AI alarm capabilities, providing 24/7 security protection for campuses, communities, hotels, and other settings.
Features
Anodized Metal PanelsIntegrated Compact DesignIndustrial Grade Protection StructureDustproof, explosion-proof, and anti-interference capabilitiesHigh-definition video intercom + dual supplementary lightsAI intelligent alarmCloud integration + multi-terminal communicationCloud integration + multi-terminal communicationAge-friendly / Emergency-ready design
| Processor | High-performance embedded SOC processor |
| Operating system | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Network | Wired/WIFI/4G |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 10W speaker + 30W amplifier output |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Fill Light | 2 items |
| Alarm interface | 1 digital input, 1 digital output |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤10W |
| Material | Aluminum alloy brushed panel |
| Dimensions | 105mmX164mmX41.5mm |
| How to Install | Wall Mount |
| Operating Temperature | -30°C to 75°C |
