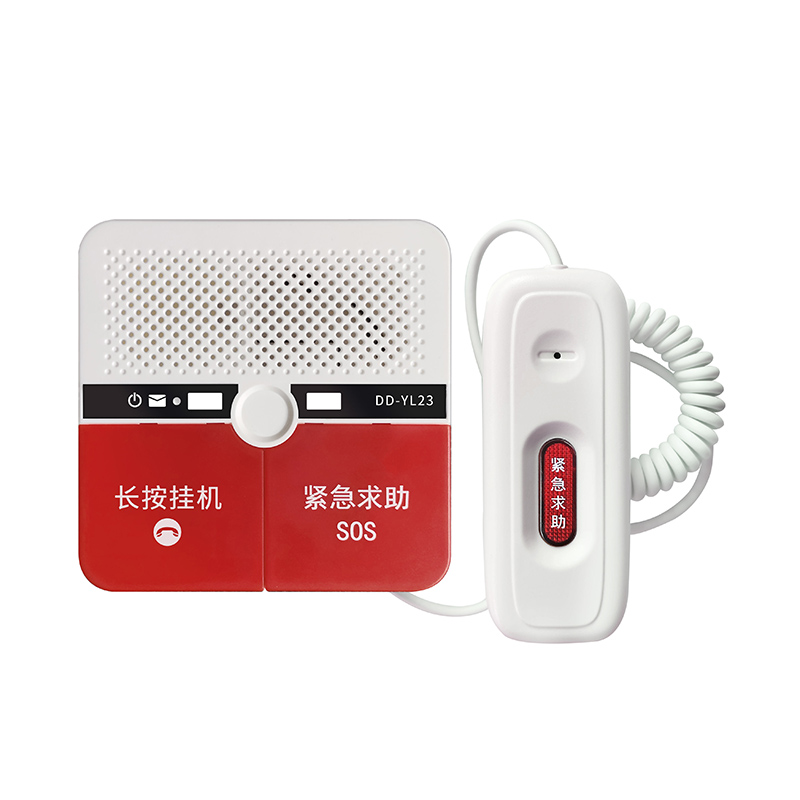

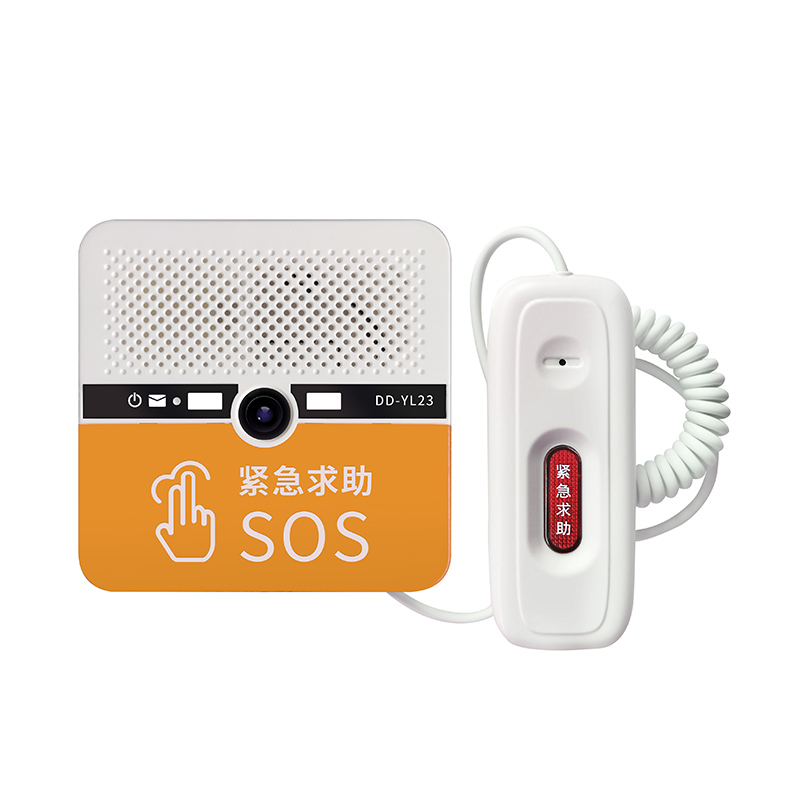

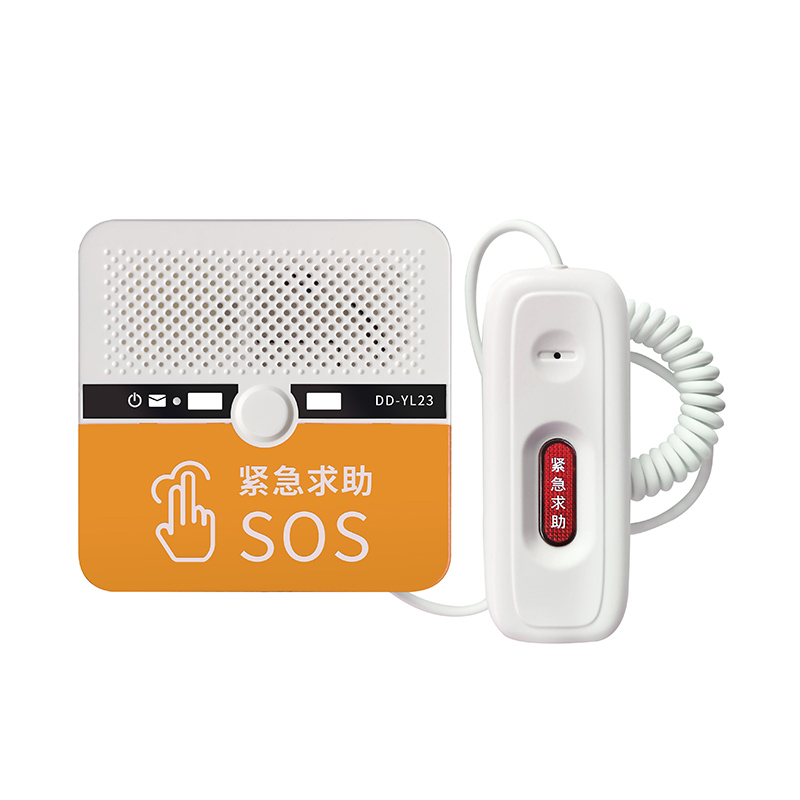

One-click alarm
DH-YL01
Home-use ABS alarm terminal
One-button emergency call with visual intercom integration, offering round-the-clock safety support and smart elderly care services for the elderly living at home, in communities, and in institutions. It facilitates rapid communication with medical staff and family members to safeguard their safety and well-being.
Features
Multi-terminal simultaneous processing of alarm information: 6 terminals (server side, APP side, mini-program, web page side, agent side, management machine side)Supports multiple networks: AI voice alarm terminals support wired/WIFI/4G, can be used as long as they are powered on, and are simple to install and wireSelf-learning of alarm voices and keywords, supports dialects: AI voice alarm terminals can learn and customize alarm voices independently, and support various local dialectsButton call: When the elderly need help, they can press the red button on the device to call a guardian/responsible person, or press the 'Emergency Help' button on the handle to seek assistanceSensor alarms: Supports connection of various sensors such as smoke detectors, gas detectors, water detectors, SOS remotes, and door magnetsLong recognition distance and high recognition accuracy: The Al voice alarm terminal features a high-sensitivity microphone that can detect sounds from 3 to 5 meters away, offering accurate keyword recognition and addressing the needs of elderly individuals who may have difficulty moving.SIP protocol support: Compatible with the standard SIP protocol, enabling integration with third-party SIP telephones.Multiple voice SDK integration: Supports SDKs in 7 languages (JAVA, C++, C#, etc.) for both client-server (CS) and browser-server (BS) applications.
| Processor | High-performance embedded System-on-Chip (SOC) processor |
| Operating system | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Network | Wired/WIFI/4G |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 2W speaker |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Alarm Interface | 1 digital input, 1 digital output |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤5W |
| Material | ABS material |
| Dimensions | 88mm×88mm×34mm |
| Installation method | Wall-mounted |
| Operating temperature | -30°C~75°C |
