Intercom column
DH-P6X

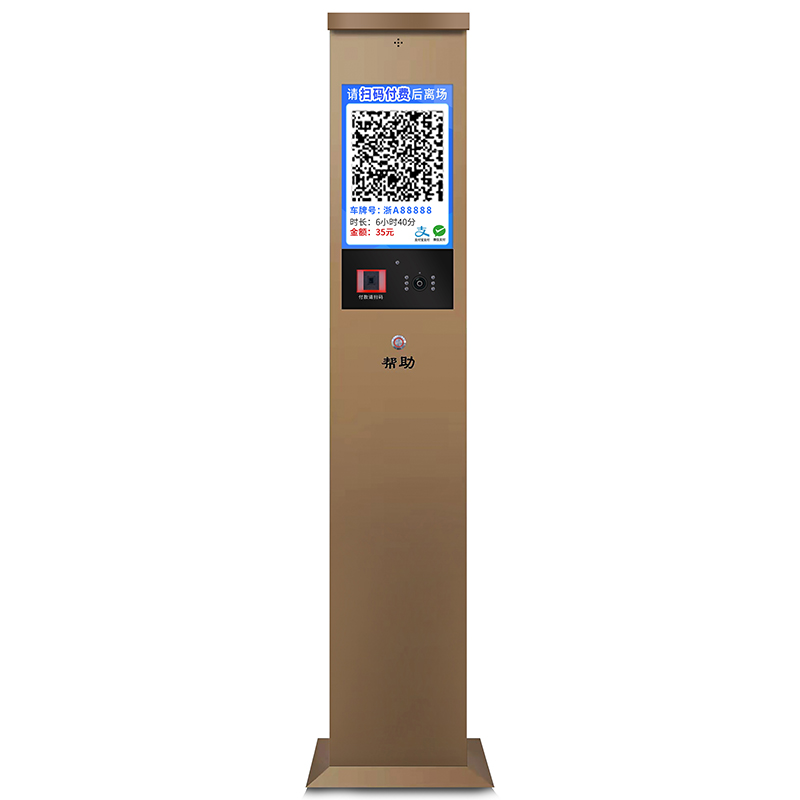

12.1-inch unattended parking intercom pillar
Full-function exit pillar, incorporating an industrial-grade high-definition LCD billing screen, real-time license plate/amount display, dynamic payment QR code, high-definition visual intercom, ground sensor vehicle integration, and SIP full-protocol compatibility, serving as the core component of fully unattended parking lot exits.
Features
Native access to ground magnetic coils/radar detectors, with automatic triggering upon vehicle arrivalNatively supports SIP 2.0 and ONVIF protocols, seamlessly integrating with mainstream parking platforms, gate controllers, and security NVRs; direct connection without the need for a gateway, resulting in zero adaptation costsPoE network cable power supply/DC12V dual mode, enabling the transmission of audio and video, billing data, and control signals in one cable, in compliance with low-voltage engineering standardsTwo-way scheduling: Supports one-button calls to the call center from the column, remote announcements from the center, and broadcasting. Also supports group calls and transfers, suitable for peak operation and maintenance.Real-time billing display: High-definition LCD screens show the license plate number, parking duration, payment amount, and dynamic QR code in real-time, with no delay or errors, synchronized with the parking system.The vehicle's ground pressure sensor automatically wakes up the screen and triggers voice alerts, while the camera captures images. The screen turns off automatically when the vehicle leaves and turns on when the vehicle arrives, achieving intelligent energy saving.One-click help center pop-up with two-way audio and video communication for remote handling of payment issues and equipment failures.One-click help center pop-up with two-way audio and video communication for remote handling of payment issues and equipment failures.Call/Motion detection triggers automatic recording, integrated with NVR for storage to provide comprehensive evidence in dispute resolutionOperates continuously 24/7, featuring remote volume control, firmware updates, and offline caching for billing
| Processor | High-performance embedded System-on-Chip (SOC) processor |
| Operating system | Embedded LINUX operating system |
| Sensor | 100W/130W/200W pixel CMOS sensor |
| Video compression | H.264/25FPS |
| Audio input | Built-in high-sensitivity omnidirectional microphone |
| Audio output | Up to 20W |
| Compression standard | G.711, G.713, GSM, DAC |
| Display Screen | 12.1" Industrial Display Screen (-30°C~85°C) |
| Gate Switch Interface | Open Gate Relay Route 1, Close Gate Relay Route 1 |
| QR Code Interface | 1 |
| Card Swipe Interface | 1 |
| Network | Wired/WiFi/4G |
| Network Port | 10/100M Adaptive Ethernet Port |
| Motion Detection/IO Interface | 3-Input |
| Power Supply | AC 220V |
| Power Consumption | ≤30W |
| Dimensions | 1350mm×230mm×90mm |
| Base dimensions | 310mm×170mm |
| Material | Tempered glass + lead-free galvanized steel sheet |
| Operating Temperature | -30℃~75℃ |
