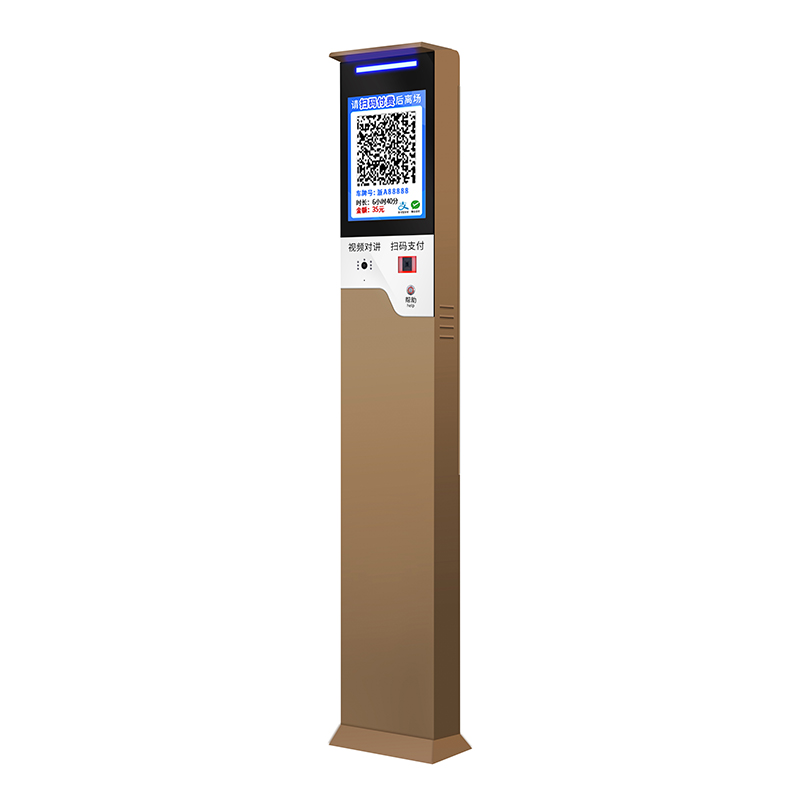

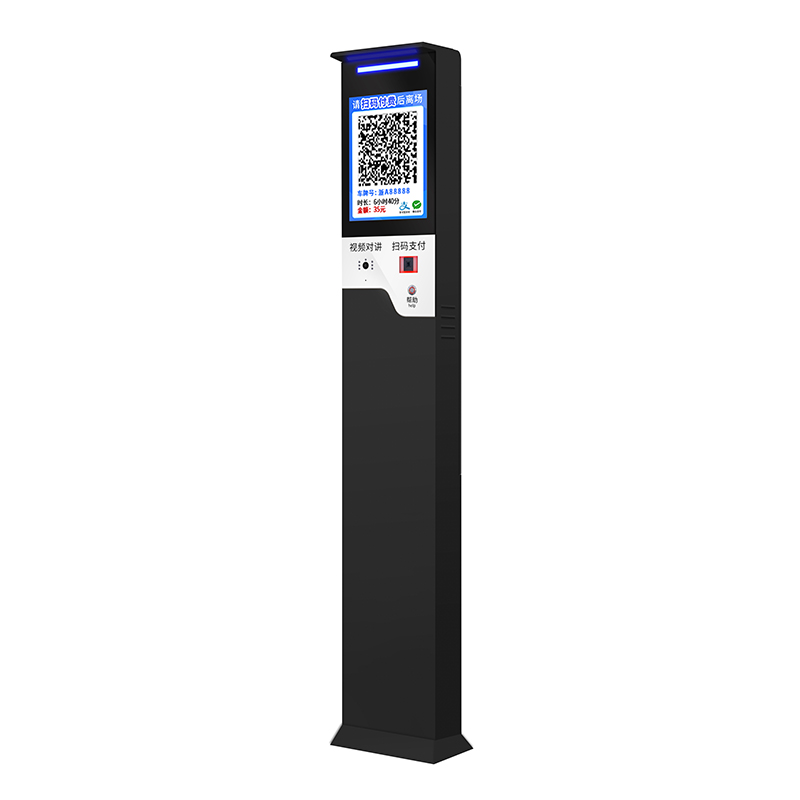

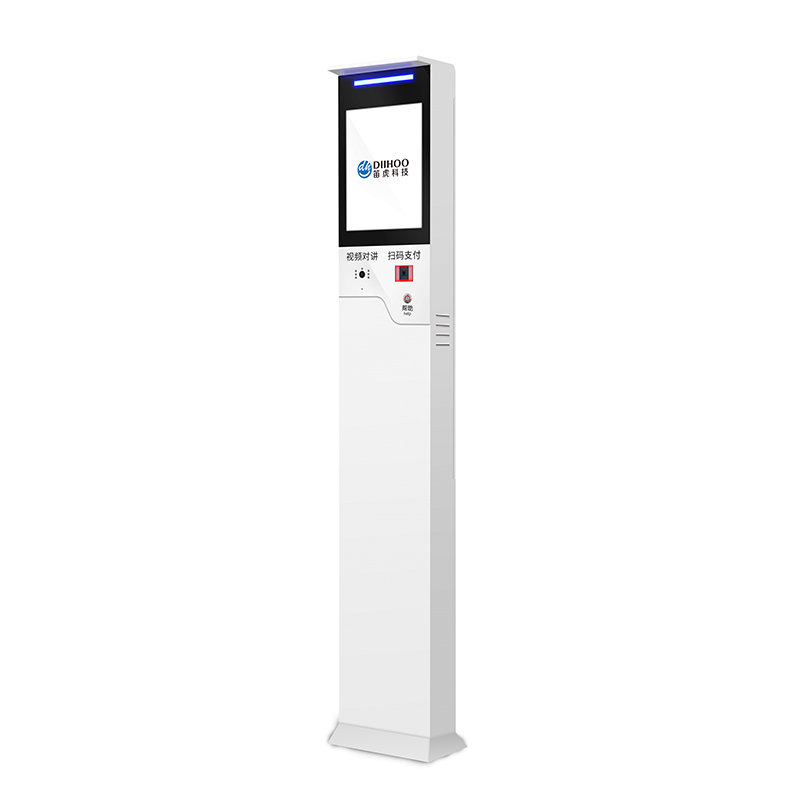

Intercom column
DH-P9X
12.1-inch unattended parking intercom pillar
Developed for unattended parking lots, this system combines one-touch help, high-definition video communication, remote cloud services, and remote gate control. It is resistant to water and explosions, and its durability enhances both parking management efficiency and the car owner's experience.
Features
One-Click Call/Help, Automatic Call, Cloud-based Agent12.1-inch LCD DisplayQR Code PaymentScan code to call, button call, AI callRemote gate opening/closingHigh-sensitivity microphone, with a pickup range of 5 metersIP network architecture, capable of crossing network segments and routersVideo linkage with multiple screensMonitoring and listening functionBroadcasting and speaking functionRecording and video functionTV wall displayRemote control via mobile appNative access to ground loop sensors/radar detectors, with automatic triggering upon vehicle arrival
| Processor | High-performance embedded System-on-Chip (SOC) processor |
| Operating system | Embedded LINUX operating system |
| Sensor | 100W/130W/200W pixel CMOS sensor |
| Video compression | H.264/30FPS |
| Audio input | Built-in high-sensitivity omnidirectional microphone |
| Audio output | Up to 20W |
| Compression standard | G.711, G.713, GSM, DAC |
| Display Screen | 12.1-inch Industrial Display Screen (-30°C~85°C) |
| Gate Switch Interface | 1 Open Gate Relay, 1 Close Gate Relay |
| QR Code Interface | 1 |
| Card Swipe Interface | 1 |
| Network | Wired/WiFi/4G |
| Network Port | 10/100M Adaptive Ethernet Port |
| Motion Sensor/IO Interface | 3 Input Channels |
| Power Supply | AC 220V |
| Power Consumption | ≤30W |
| Material | Tempered glass + lead-free galvanized steel plate |
| Appearance dimensions | 1350mmX230mmX90mm |
| Base dimensions | 310mmX170mm |
| Operating Temperature | -30°C to 75°C |
