Intercom column
DH-P5

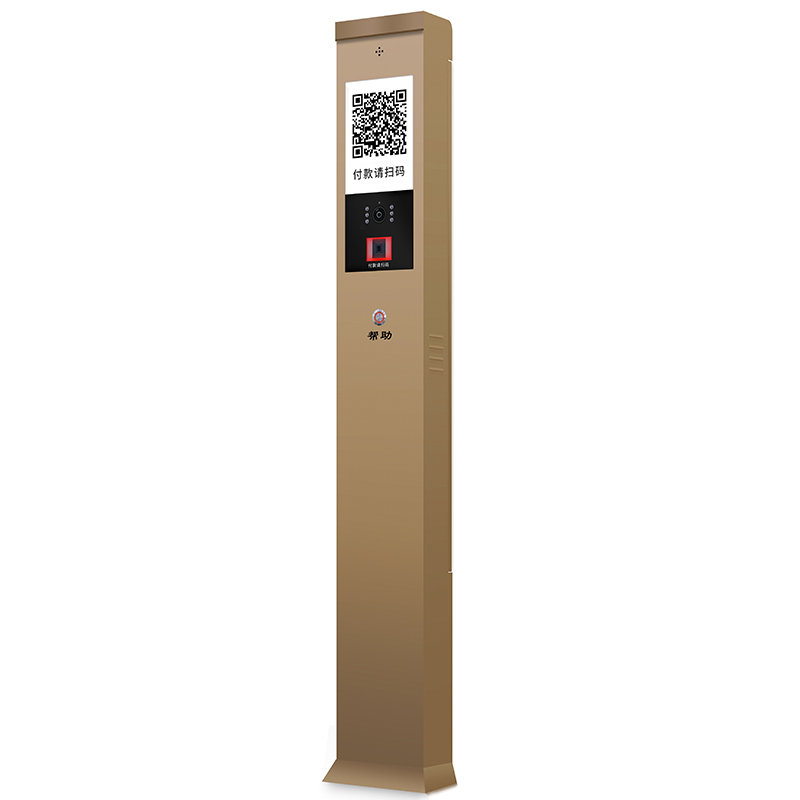

Scan-code SIP unattended parking intercom post
An integrated self-service payment and video intercom dual-function flagship post, which serves as the core front-end terminal for high-end commercial parking lots and fully unattended parks. It combines scan-code payment, high-definition video intercom, SIP protocol interoperability, and audio-video linkage for evidence collection. It is natively compatible with SIP/ONVIF/IP multicast, providing a complete 'self-service payment + remote assistance + unattended operation' solution.
Features
Natively integrated ground loop sensors/radar detectors, which trigger automatically upon vehicle arrivalSupports simultaneous voice broadcasting at multiple entrances and exits, as well as zone-specific calls; features low bandwidth and zero latency, suitable for large commercial complexes and super-large warehouse networkingSupports dual power supply options: PoE network cable or DC12V; integrates audio and video transmission as well as device power supply, in compliance with low-voltage electrical engineering construction standardsFull-duplex intercom scheduling: Supports one-key calls to the management center from the column, remote announcements by the center, call forwarding, and group call scheduling to meet the operational needs during peak periods.Car owners can pay by scanning a code independently, eliminating the need for manual intervention and reducing labor costs by 90%.High-definition video intercom: One-key requests automatically trigger center pop-ups for simultaneous audio and video calls, enabling remote resolution of payment issues and gate malfunctions.Strong integration with the parking system: Natively connects with license plate recognition and gate systems, supporting remote one-key gate opening and recording of abnormal events.Built-in AI for noise reduction, echo cancellation, and anti-hissing algorithms to filter out noise from garage fans and traffic, ensuring clear communication in noisy environments.
| Processor | High-performance embedded SOC processor |
| Operating system | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Video compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Up to 20W |
| Compression Standard | G.711, G.713, GSM, DAC |
| Gate Opening Interface | Gate Opening Relay 1, Gate Closing Relay 1 |
| QR Code Interface | 1 |
| Card swiping interface | One |
| Network | Wired/WiFi/4G |
| Network port | 10/100M Adaptive Ethernet Port |
| Ground Detection/IO Interface | 3-Way Input |
| Power Supply | AC 220V |
| Power consumption | ≤15W |
| Appearance dimensions | 1250mm×150mm×90mm |
| Base dimensions | 230mm×170mm |
| Material | Lead-free galvanized steel plate |
| Operating temperature | -30℃ to 75℃ |
