AI one-click alarm
DH-X2-4G

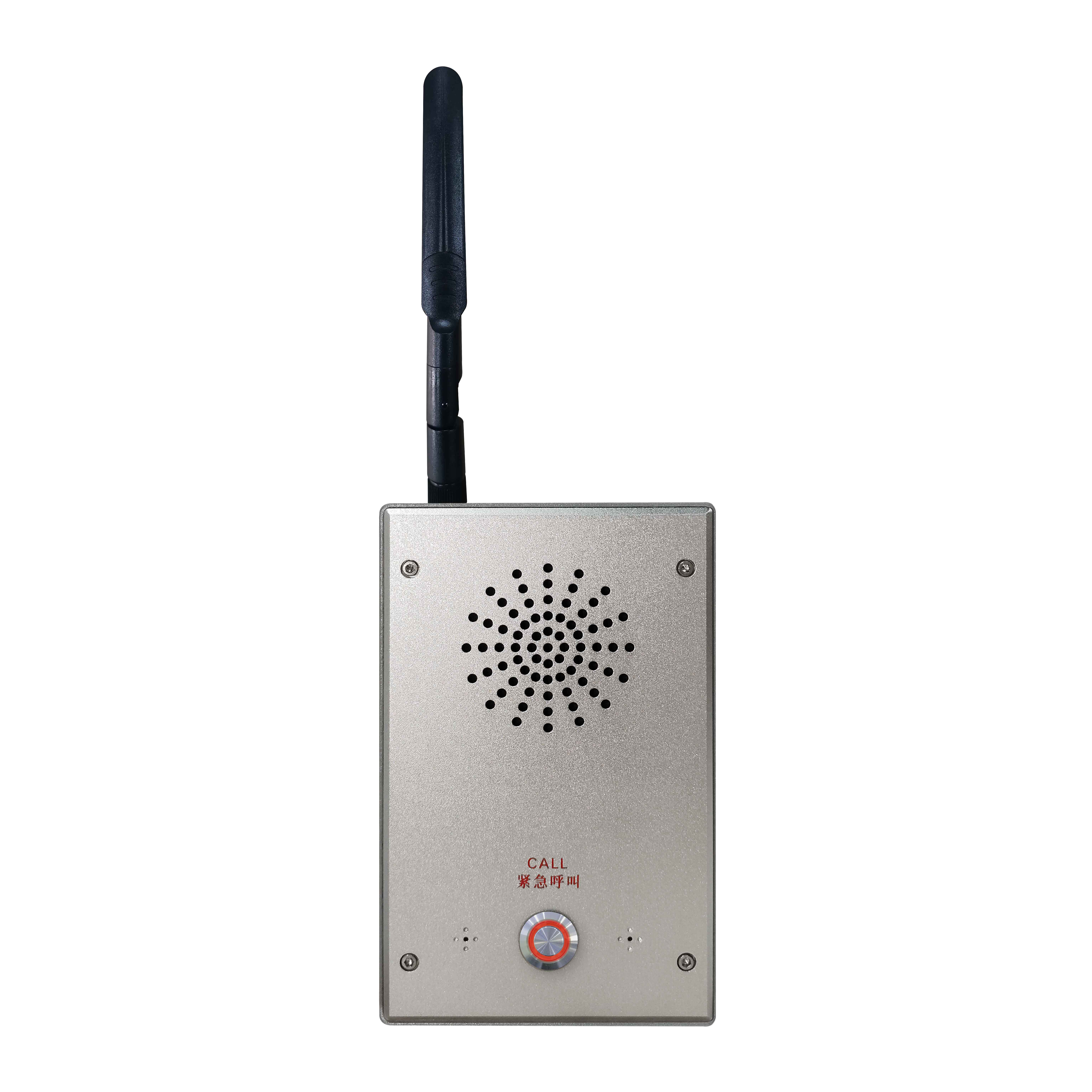

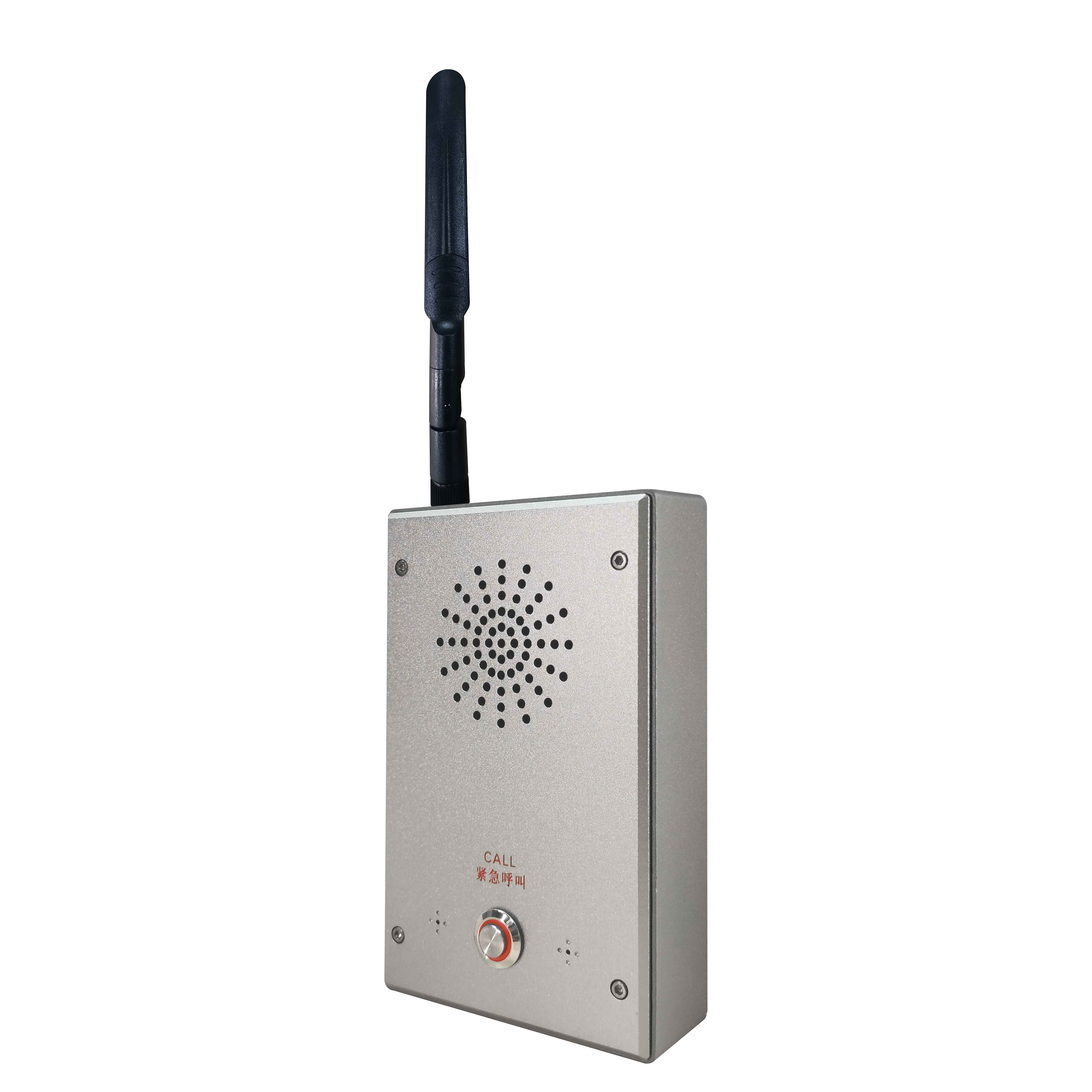

4G Die-cast AI Campus Anti-bullying Terminal
AI Intelligent Early Warning for Campus Bullying, rapid alarm within 3 seconds, quick coordination with security personnel for handling, fully ensuring student safety. Innovative natural language recognition + voice purification algorithms synchronize the location of the caller, on-site audio and video, and preset information to the emergency response center in seconds, achieving fast and precise automated emergency responses.
Features
Normally no recording is performed, but the automatic recording feature is activated upon an alarm.Supports WiFi and 4G connectivity.5-watt high-quality speaker.IP network architecture, capable of operating across various network segments and routers.Automatic alarm triggered by noise detection.Natural Language Semantic Generalization AlarmMulti-terminal simultaneous processing of alarm information: 6 terminals (server side, APP side, mini-program, web page side, agent side, management machine side)The system includes 58 built-in keywords + 15 custom keywordsSupports keyword entry and dialect input on the device sideReal-time broadcasting and scheduled broadcasting functionsCan be connected to third-party devices and integrated with third-party platforms
| Processor | High-performance Embedded System-on-Chip (SOC) Processor |
| Operating System | Embedded LINUX operating system |
| Sensor | 200W pixel CMOS sensor |
| Network | WIFI/4G |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 5W speaker + 30W amplifier output |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Alarm Interface | 1 digital input, 1 digital output |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤8W |
| Material | Aluminum alloy brushed panel |
| Dimensional specifications | 105mmX164mmX41.5mm |
| Installation method | Wall-mounted |
| Operating temperature | -30°C to 75°C |
