Management host
DH-H10

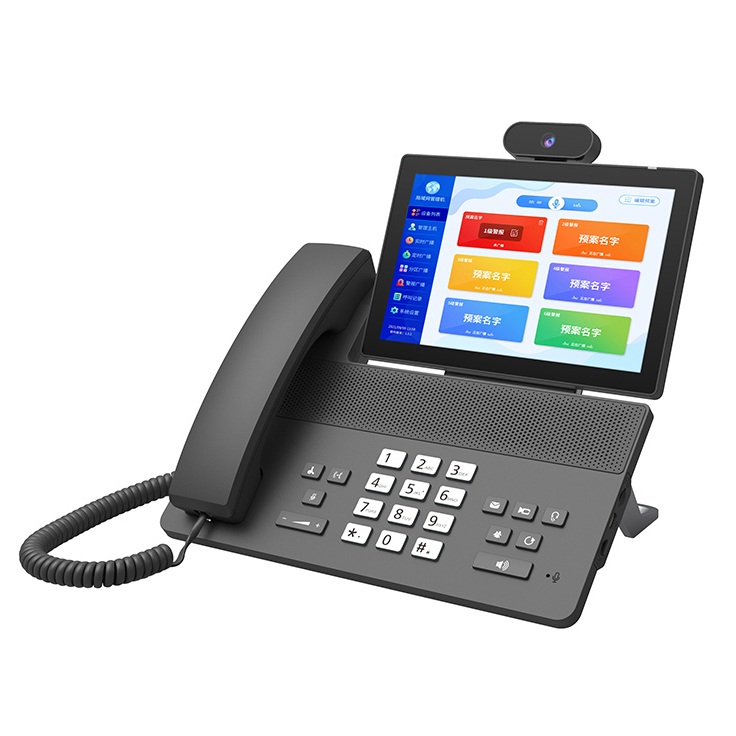

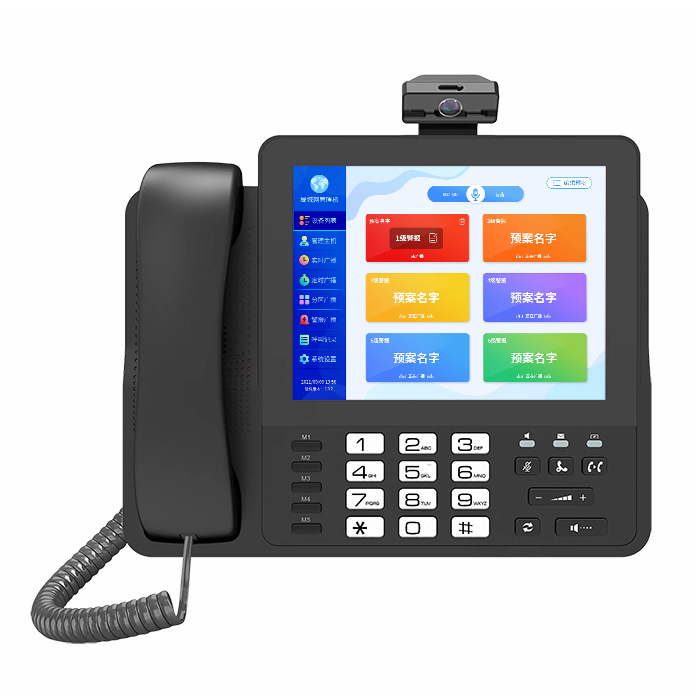

Goose Neck Wheat Emergency Dispatch Intercom Host
Cloud platform core management terminal, supporting high-definition video intercom, remote control, video linkage, and centralized dispatching, widely used in smart communities, campuses, industrial parks, hospitals, government agencies, commercial complexes, and other unattended and security management scenarios.
Features
The equipment allows front-end devices to contact multiple centers for managementThe management machine can switch to a managed mode when not in use, and all incoming calls will be directed to this managed machineHigh-definition intercomRemote control switchQuery device call recordsCustomizable video interface button namesVideo linkage multi-screen monitoring and listening functionBuilt-in Wi-Fi and Bluetooth allow access to wireless networks, pairing with Bluetooth headphones or smartphones, freeing users from the constraints of a desk and greatly enhancing flexibility. It also provides a wireless hotspot for mobile devices such as phones and tablets.Supports HDMI secondary stream input and HDMI dual-screen expansion, as well as USB2.0 expansion.Features a powerful hardware core and the latest audio and video processing technologies, supporting Opus encoding and 1080P high-definition dual streams for an immersive high-definition video communication experience.10.1-inch, 1280*800 pixel IPS high-definition screen with multi-touch technology for a smoother operating experience.10.1-inch, 1280*800 pixel IPS high-definition screen with multi-touch technology for a smoother operating experience.Magnetic Induction Design: Both the fork spring and the home button use magnetic induction design, resulting in higher reliability.Safer Camera: 8-megapixel camera with 210-degree rotation and wide-angle lens, capable of imaging in low-light conditions.
| Processor | Cortex A55 1.8G 4-core |
| Operating System | Android 11.0 |
| Sensor | 500W (optional) |
| Video compression | H.264/25FPS |
| Audio input | Gooseneck microphone |
| Network protocol | TCP/IP, DNP |
| Network port | 10 megabytes/100 megabytes/1000 megabytes |
| Storage | 2+16 gigabytes |
| Power Consumption | Less than 10 watts |
| Screen Size | 10.1-inch High-definition Touchscreen |
| Dimensional Specifications | 168.6mm×320mm×50mm |
| Interface Type | USB*2 |
| Material | Capacitive Touch |
| Operating Temperature | -10°C~55°C |
